Advanced Imaging for Industry


Advanced imaging is used across different industrial and commercial applications. Two- and three-dimensional images  at micro- and nano-scale provide insights into material characteristics, their changes over time, product failures and potential root causes. Advanced imaging contributes to  research, product development and prototyping, testing and quality control.


We offer  an easy access to state-of-the-art facilities, imaging services and expert knowledge, especially to small and medium-sized companies.



  • Semiconductors and microelectronics
  • Life Science
  • Food Industry
  • Material Sciences

Your road to advanced imaging

We assist you on your way to our imaging services. We keep all information confidential throughout our collaboration on your request.


  1. We discuss your specific problemwith you

  2. We define the optimal imaging techniques and measurements

  3. We agree on a project setting together (e.g. contract research, research collaboration or student collaboration)

  4. We carry out the measurements with your samples

  5. You receive the data and expert’s report

Test services now for free!

Are you interested to experience advanced imaging? We are looking for you! You can now test  our services free of charge.


You benefit from public funding: Around 2 person days of our researchers can be financed, usually allowing to carry out complete measurements of samples depending on the complexity of the project.


Our instruments

Scanning Electron Microscopy and EDX

Scanning Electron Microscopy and EDX

The scanning electron microscope (SEM) combined with an electron diffraction spectroscopy (EDX) tool consist a strong and fast tool for analysis and characterization, providing both detailed images, elemental analysis and chemical composition at the same time.


Material science takes advantage of SEM for research, quality control and failure analysis. Various coatings, surfaces, materials can be inspected, and valuable information extracted. For example, Au evaporated material can be inspected for cluster dimensions and analysis of the coated material for contaminants.


Life sciences can strongly benefit from the SEM analysis as the equipment can be used for anything from insects and tissue, to bacteria and viruses. For example, an insect species can be analysed to determine the effect of climate change, or tissue inspection of tissue damage or fibrin network analysis.


The semiconductor industry takes advantage of the SEM capabilities for failure analysis of electronic devices and modules as it can provide high resolution images down to the nanoscale and inspect grain boundaries, fracture topographies, crack propagation, solder composition and quality analysis etc.

Moreover, the applications of the SEM are not limited only to those categories.



Hitachi S-4800

Sample dimensions

Up to 100 mm


1 nm (Accelerating voltage: 15 kV, WD: 4 mm)

2.0 nm (Accelerating voltage: 1 kV, WD: 1.5 mm)


High magnification mode: 100x to 800,000x

Low magnification mode: 30x to 2,000x


Accelerating voltage (Vacc): 0.5 to 30 kV (in 100 V steps)


Cross sectional mount, 10 mm round mount, 30 mm round mount, 100 mm round mount, EBL mount, preparation and measurement in Class 100 Cleanroom

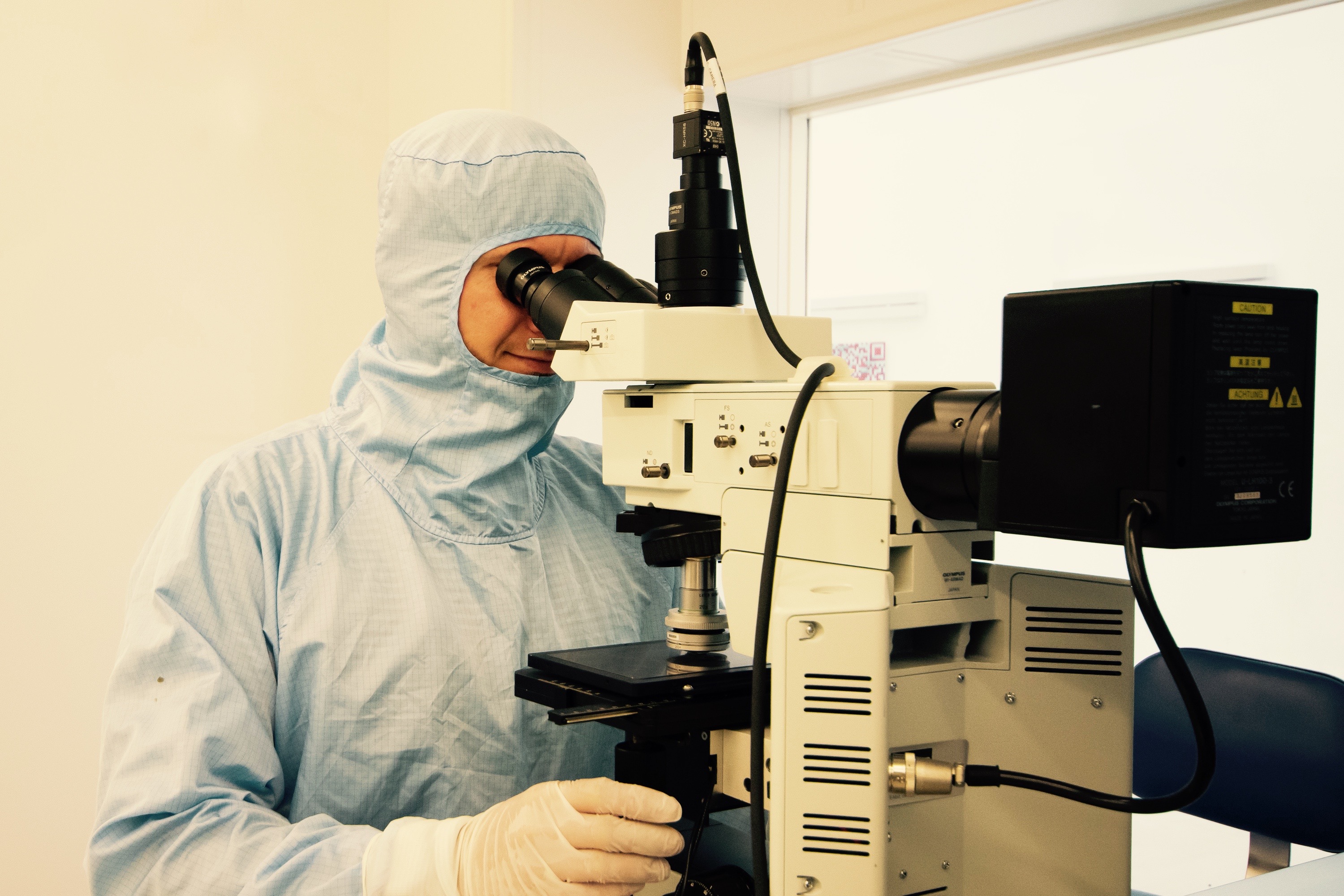

Optical Profilometry

Optical Profilometry

Optical profilers are used for characterization of surface topography from 2D and 3D images. It is a rapid non-contact, non-destructive method for obtaining roughness statistics, feature analytical dimensions, defects, channel radius, three-dimensional visualization, etc.


Fogale Microsurf 3D

Sample dimensions

Up to 100 mm

Vertical resolution

< 1 Å

Vertical measurement range

0.1 nm to 500 μm standard

RMS repeatability

0.3 nm RMS

Lateral spatial sampling

0.17 μm to 3.2 μm

Field of view

130 μm x 100 μm, 2.5 mm x 1.9 mm


1 % to 100 %

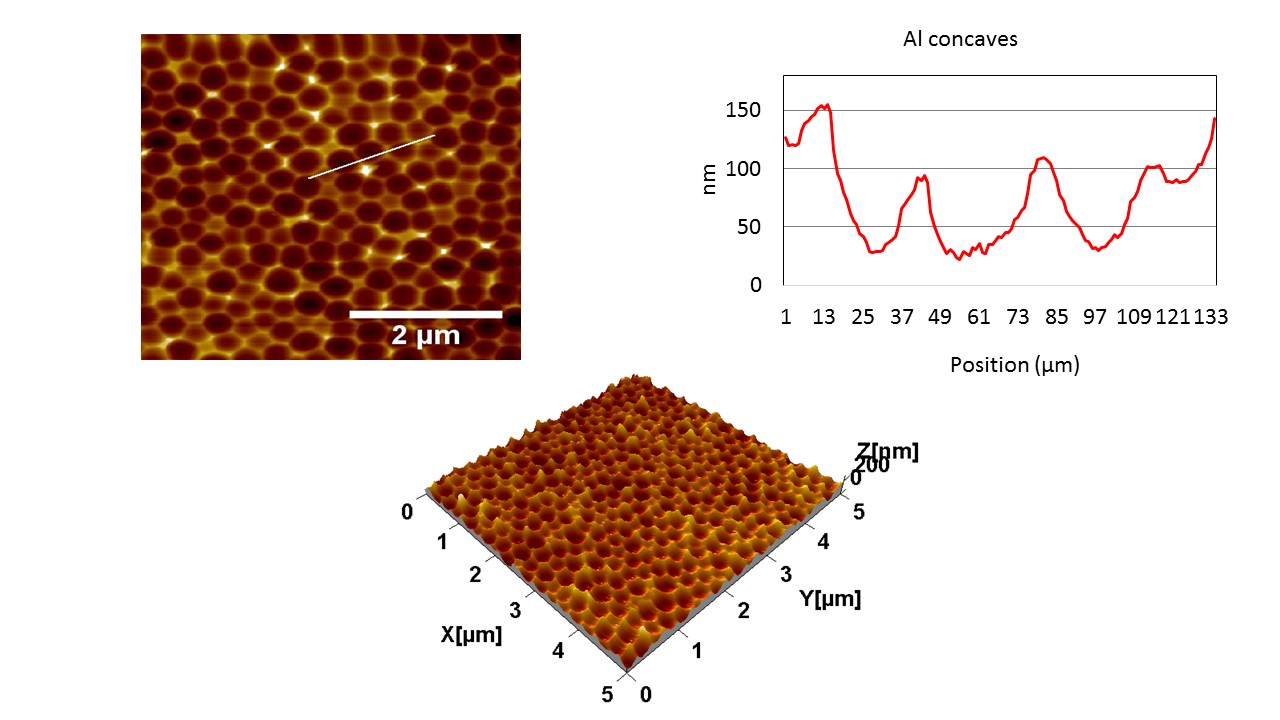

Atomic Force Microscopy

Atomic Force Microscopy

An Atomic Force Microscope (AFM) uses an ultra-sharp tip in tapping mode to scan over a surface providing details on height, surface roughness and topography information of a material in the micro- and nanoscale. The high-quality digital images obtained from the AFM can be used for post processing analysis of the area scanned, as well as two-dimensional and three-dimensional representation of the surface.


Veeco Dimension 2100

Sample dimensions

Up to 120 mm x 100 mm

Characteristics of cantilever:


Microscopic spring of length

100 μm

Tip radius

R <= 10 nm

Force constant

k = 0.01 - 40 N/m

In our facilities we have two AFM instruments. The first one is a Veeco Dimension 2100 located in the cleanroom facilities for samples that are sensitive to contaminants and high quality scans. The second instrument is a JPK NanoWizard in our microscopy lab. The NanoWizard additionally allows for microscopy in liquids, as it is combined with an inverted fluorescence microscope, force distance curve measurements, heatable sample stage and Kelvin Probe Force Microscopy (KPFM).

Helium Ion Microscopy

Helium Ion Microscopy

The Helium Ion Microscope (HIM) is a new instrument for ultra-high resolution imaging and nanofabrication. Its operation is similar to that of a scanning electron microscope (SEM) but in contrast the HIM exploits focused ion beams instead of an electron beam.


The imaging system of the HIM offers high material contrast, large focus depth, and surface sensitivity significantly superior to conventional SEM. The spatial resolution is in sub-nanometer range which is close to the resolution of transmission electron microscopes.


The HIM covers a broad range of applications in physics, material science, biology, and medicine, and can provide sub-10 nanometer nanofabrication and sub-nanometer imaging solutions for industrial and research application such as fabrication of superior photonic and plasmonic nanostructures and nano-pours in graphene for DNA sequencing.


More information can be found  here.



HIM analysis

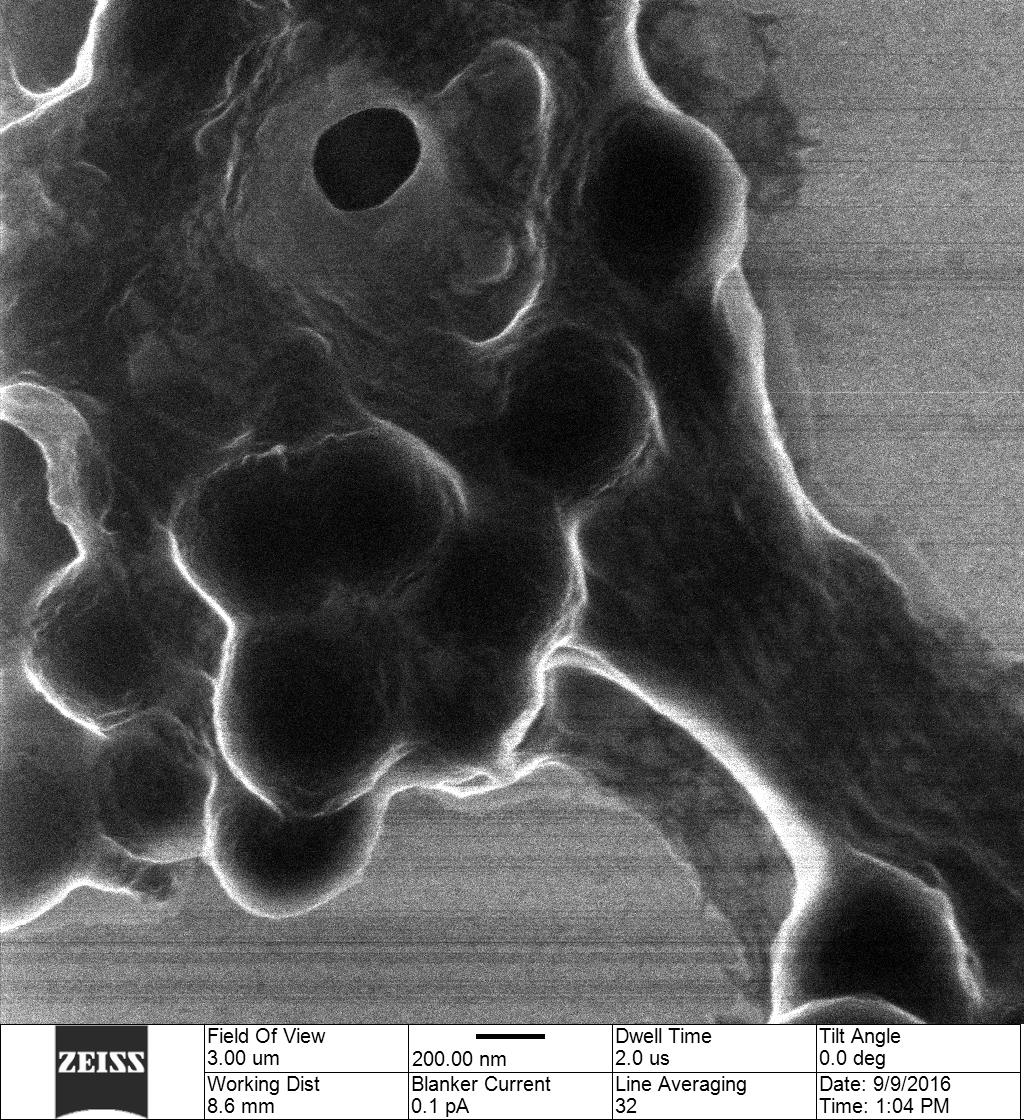

HIM analysis – Helium ion images of Staphylococcus aureus for medical purposes


Optical profilometry

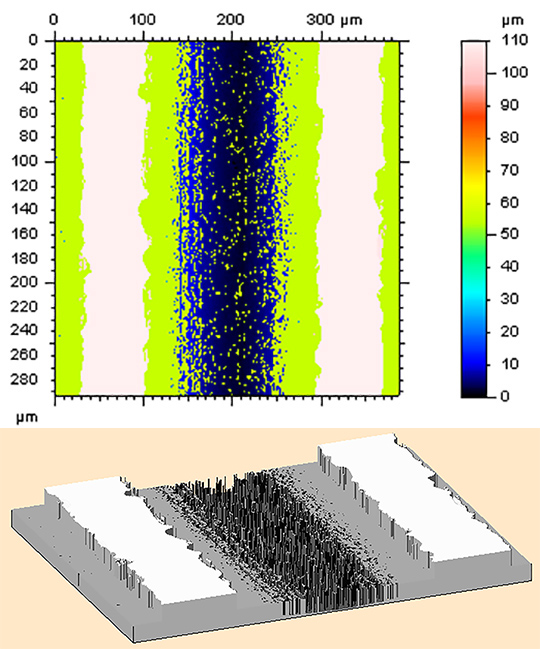

Optical profilometry - Depth cut analysis of Si wafer diced with the use of a diamond fine grid blade


SEM failure analysis

SEM - Failure analysis: Channel defect localization on a micro IC using SEM

No defect channels

Channels with defect

EDX analysis of sintered Ag/Cu pastes for Nano-Join GmbH

EDX analysis of sintered Ag/Cu pastes for Nano-Join GmbH

Nano-Join GmbH is a young technology company located in Berlin, Germany. The company is focusing on next generation sintering technologies for electronic high-performance components within optoelectronics, e-mobility or renewable energies.

Challenges and Need

The scope of this analysis is to evaluate the sinter behavior of the Copper/Silver components present in the paste and inspect how they are distributed in the sintered solid material. These data is very useful for Nano-Join as they will be able to realize further improvements and developments and can better describe the application processes for the end user.

The Mads Clausen Institute carried out the measurements and the data analysis. The equipment used is a SEM Hitachi S-4800 with a Bruker EDX add-on able to provide directly high resolution images and EDX information for material quantification.

Various samples were analyzed with different Ag/Cu concentrations in order to observe the distribution of elements in a sample and if there are any carbon traces. From the EDX analysis we observed that there are small carbon traces in all samples and that the distribution of Ag/Cu changes sligthly based on the Ag/Cu concentration. In addition the elemental mapping gave the company information of the distribution of the elements on a sample (Fig. 1). Hence Nano-Join GmbH obtained valuable information of how their pastes look like, how the Ag and Cu materials mix in a sample, and how samples should be prepared for future measurements to avoid any loss of information.

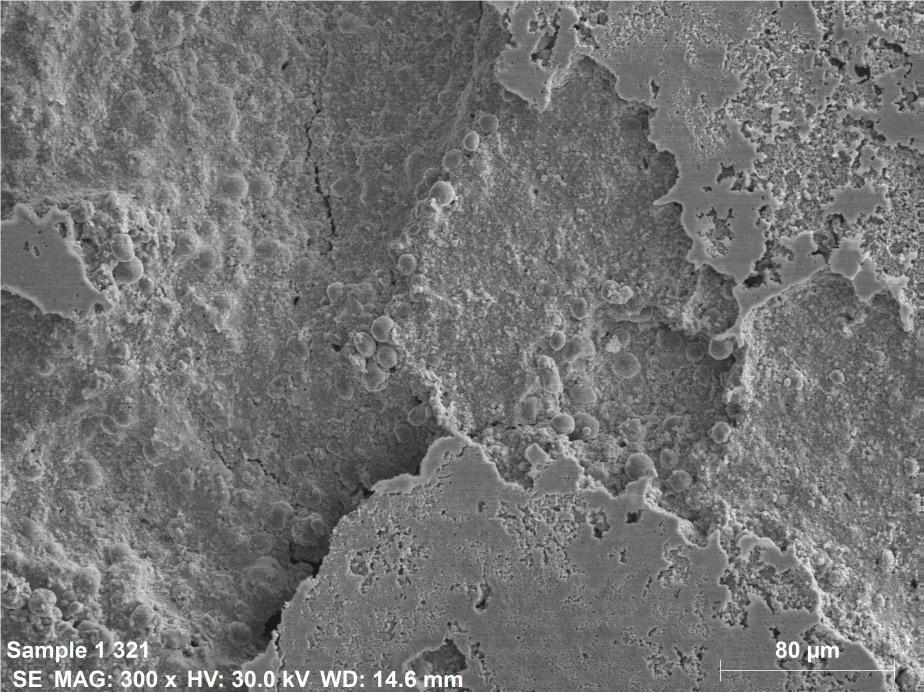

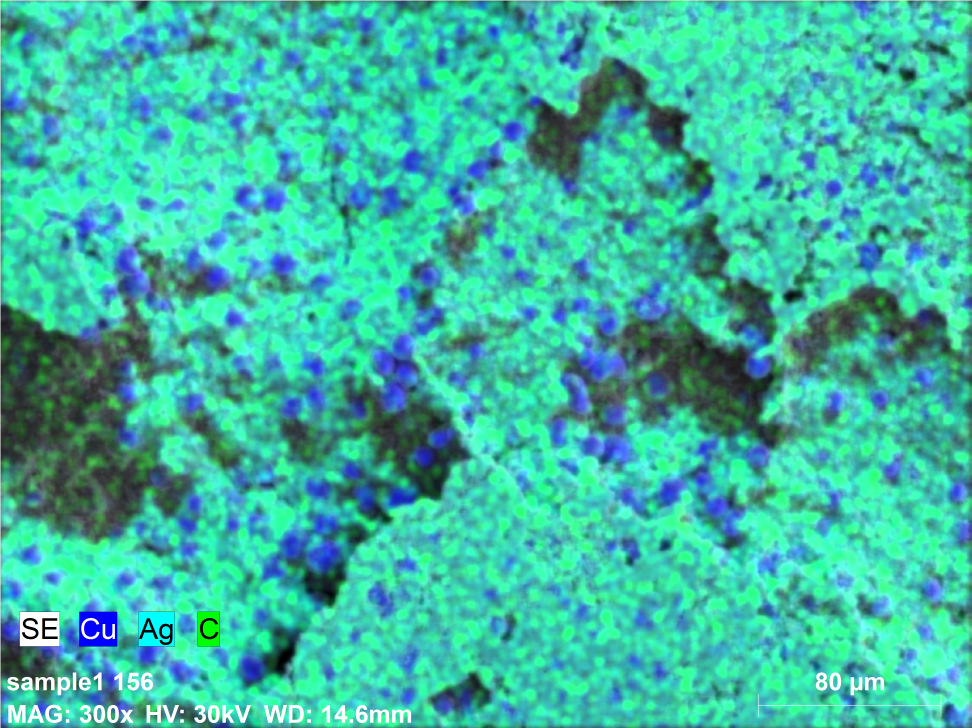

Figure 1. SEM image (left) of a Ag/Cu paste and the equivalent element map (right).

Quotes from our customers

”As a SME Nano-Join GmbH is not able to carry out all needed analytics by itself and to own all important machinery. Therefore, it was really helpful to get access to the needed measurements via BalticTRAM. Our partner in this project was SDU. We had from the start very good processes as well as very competent contacts and got all information we needed to realise further development steps. Thus, in the end the project was very successful for us and we are lucky that the costs were handled via BalticTRAM.”

Dr. Adrian Stelzer, Nano-Join GmbH

 With our equipment, we run various imaging and analytical services, provide you with data and consultancy with experts for specific materials, technology and application areas. We can also provide access to additional, complementary analytical facilities in our research network if needed.

More collaboration

Additionally, companies can benefit from a broad variety of opportunities to collaborate with us:


  • Educational activities (semester projects, bachelor and master theses, internships, content of courses)
  • Research collaboration (funded R&D, PhD)
  • Contract research (measurements and analysis, testing, consulting, custom R&D, rent of equipment)

Contact us to learn more about these options and conditions. Many of these opportunities are free of charge for companies.
